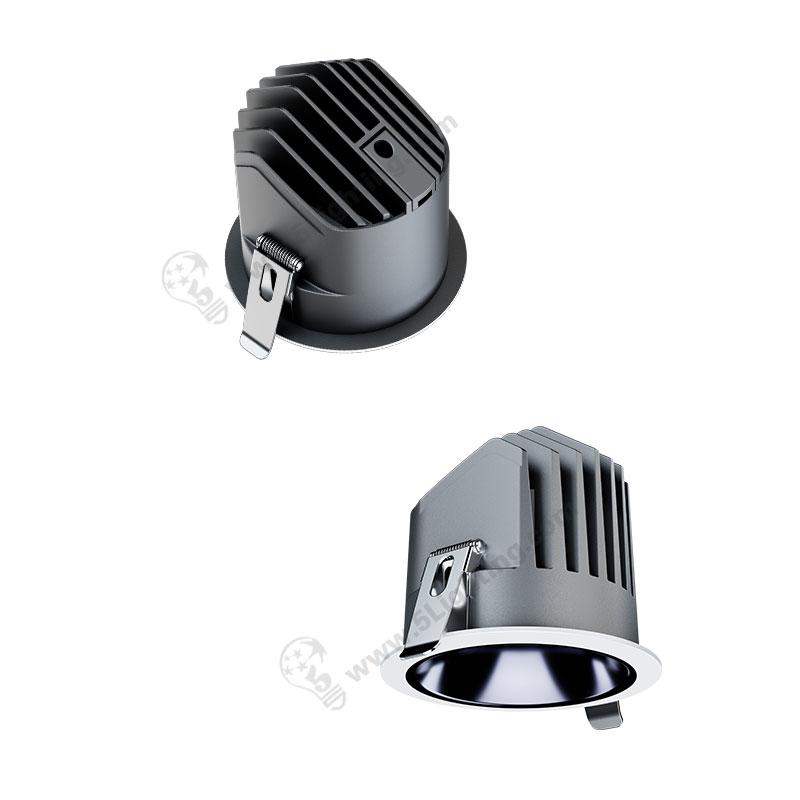

Deep anti-glare downlights
Product Type: Down light
Product Model: AX-D11525C
Lighting Source: COB
Output Voltage: 90V-260V
Application: clothing shops, hotels, living rooms......
Product Description of Deep anti-glare downlights：
- Introduction
The deep anti-glare downlights is the largest in the Aix downlight range. With an output of 25 watts but a brightness of 3000 lumens, it is an excellent lighting fixture with good luminous efficacy and high brightness.
It is 128mm long and 82mm high and requires a minimum opening size of 115mm or 4 inches to fit perfectly into the ceiling.
The downlight has a high color rendering index of 92, making objects close to their true colors in natural light.
Deep anti-glare downlights have a long service life, which can be extended up to ten years, avoiding the need for frequent replacement.
The downlight uses high-quality aluminum as the lamp body material, and the technical process of die-casting creates a clean, simple, and sturdy appearance.
- Optical Characteristics
Deep anti-glare downlights are optically designed with multiple beam angles: 15°, 24°, 36°, and 55°. The 15° beam angle has a more intense center light intensity. With no flicker and low glare, the deep anti-glare downlight is ideal for indoor lighting.
Deep anti-glare downlights can be customized with color temperature, so you can choose the right color temperature according to the occasion and the effect you need to present. For grocery shops, clothing shops, and other similar places, 2700K-3000K Kelvin is more appropriate, with the color rendering index needing to be greater than 85. The downlight has a color rendering index greater than 90, which is ideal for these places.
- Certification
The downlight has passed CE, RoHS, and other certifications. It does not contain mercury, lead, or other harmful substances, and it does not pollute the environment.
The input voltage of the downlight is 90 to 260 volts, which meets the voltage standard of most countries.
Downlights generally use power supplies from three options: DALI, Tridonic, and Lifud, with their quality approved by the industry. The power factor of the downlight is 0.9, and the effective utilization of power is high.
- Application
Deep anti-glare downlights are highly efficient with plenty of lumens, making them ideal for commercial lighting.
The deep anti-glare downlight's protection class is IP44, which only has the splashproof function, not waterproof. It is ideal for lighting areas that are only exposed to rain or splashing water.
The outstanding feature of the Deep Anti-Glare Downlight is the low glare, and its optical design makes the lighting flicker-free, low glare, low irritation to the human eye, and visual protection.
Features:
- Bright Deep anti-glare downlights AX-D11525C;
- High color rendering index (92CRI) ;
- A high-quality aluminum body has good heat dissipation characteristics and protects the light source.;
-Multiple beam angles for multi-space arrangement ;
Follow the instruction of installation for this down light, you can install it easily and quickly.
Good choice to use our 25W down light for your application.
Welcome to get more information of this down lighting from https://www.5Lighting.com
| Brief Description | |
| 25 Watts recessed downlight, 90V-260V, Replaces 125Watts Halogen spotlights | |
| Item Type: | LED downlight |
| Model Number: | AX-D11525C |
| Electrical and optical parameter | |
| Replacement : | Halogen Down Lighting |
| Power consumption: | 25 W |
| Bright: | 3000LM |
| Dimensions: | 128*82 |
| Cutout(mm) | ∅115 |
| Lighting source: | COB |
| Input voltage: | 90V-260V |
| Base Type: | Nake Wired |
| Beam angle: | 15°24°36°55° |
| Color: | White / Black / Customized |
| Color temperature: | 2700K / 3000K / 4000K / 5000K / Customized |
| Materials: | Aluminum |
| Application Area: | Indoor |
| Dimming: | Non-dimming / TRAIC dimming / DALI dimming |
| Working Temperature (℃): | -20 - 60℃ |
| Warranty: | 5 years |
| Life span (based on 4 hrs./day) | 10 years |
- Overview
-
Product Description of Deep anti-glare downlights：
- Introduction
The deep anti-glare downlights is the largest in the Aix downlight range. With an output of 25 watts but a brightness of 3000 lumens, it is an excellent lighting fixture with good luminous efficacy and high brightness.
It is 128mm long and 82mm high and requires a minimum opening size of 115mm or 4 inches to fit perfectly into the ceiling.
The downlight has a high color rendering index of 92, making objects close to their true colors in natural light.
Deep anti-glare downlights have a long service life, which can be extended up to ten years, avoiding the need for frequent replacement.
The downlight uses high-quality aluminum as the lamp body material, and the technical process of die-casting creates a clean, simple, and sturdy appearance.
- Optical Characteristics
Deep anti-glare downlights are optically designed with multiple beam angles: 15°, 24°, 36°, and 55°. The 15° beam angle has a more intense center light intensity. With no flicker and low glare, the deep anti-glare downlight is ideal for indoor lighting.
Deep anti-glare downlights can be customized with color temperature, so you can choose the right color temperature according to the occasion and the effect you need to present. For grocery shops, clothing shops, and other similar places, 2700K-3000K Kelvin is more appropriate, with the color rendering index needing to be greater than 85. The downlight has a color rendering index greater than 90, which is ideal for these places.
- Certification
The downlight has passed CE, RoHS, and other certifications. It does not contain mercury, lead, or other harmful substances, and it does not pollute the environment.
The input voltage of the downlight is 90 to 260 volts, which meets the voltage standard of most countries.
Downlights generally use power supplies from three options: DALI, Tridonic, and Lifud, with their quality approved by the industry. The power factor of the downlight is 0.9, and the effective utilization of power is high.
- Application
Deep anti-glare downlights are highly efficient with plenty of lumens, making them ideal for commercial lighting.
The deep anti-glare downlight's protection class is IP44, which only has the splashproof function, not waterproof. It is ideal for lighting areas that are only exposed to rain or splashing water.
The outstanding feature of the Deep Anti-Glare Downlight is the low glare, and its optical design makes the lighting flicker-free, low glare, low irritation to the human eye, and visual protection.
Features:
- Bright Deep anti-glare downlights AX-D11525C;
- High color rendering index (92CRI) ;
- A high-quality aluminum body has good heat dissipation characteristics and protects the light source.;
-Multiple beam angles for multi-space arrangement ;
Follow the instruction of installation for this down light, you can install it easily and quickly.
Good choice to use our 25W down light for your application.
Welcome to get more information of this down lighting from https://www.5Lighting.com
- Specification
-
Brief Description 25 Watts recessed downlight, 90V-260V, Replaces 125Watts Halogen spotlights Item Type: LED downlight Model Number: AX-D11525C Electrical and optical parameter Replacement : Halogen Down Lighting Power consumption: 25 W Bright: 3000LM Dimensions: 128*82 Cutout(mm) ∅115 Lighting source: COB Input voltage: 90V-260V Base Type: Nake Wired Beam angle: 15°24°36°55° Color: White / Black / Customized Color temperature: 2700K / 3000K / 4000K / 5000K / Customized Materials: Aluminum Application Area: Indoor Dimming: Non-dimming / TRAIC dimming / DALI dimming Working Temperature (℃): -20 - 60℃ Warranty: 5 years Life span (based on 4 hrs./day) 10 years - Leave Message
-
