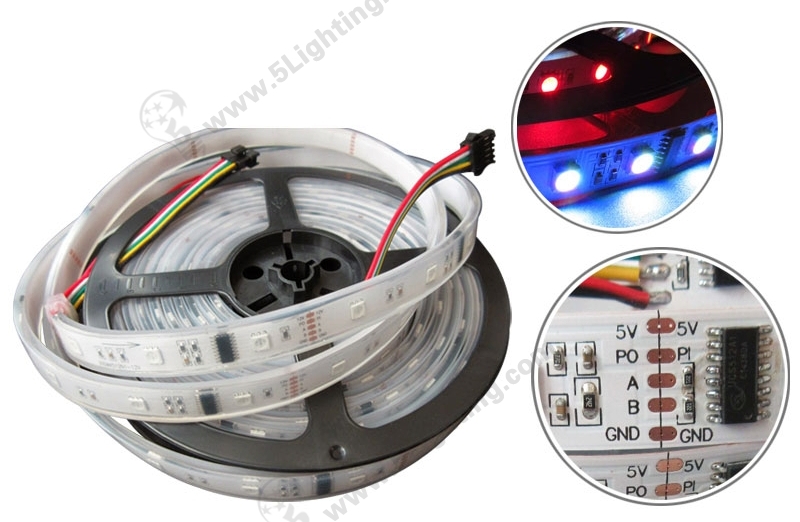

DMX LED Strip SMD 5050

Features:

a): Factory direct sale this dmx led strip adopts superbright 5050 SMD LED chips as lighting source, high intensity and reliability, and with 120 degress wide beam angle, make it can emit uniform and soft lighting, to creat a great illuminating effects;

b): This dmx digital led strip runs on DC12V version control system, the DMX512 version is 5 ways output, include 3 data and 2 power wire, no require of decoder, can be working with DMX512 signal directly, and DMX Address can be programmed. the default address of all the IC is address 1;

c): Unique design dmx rgb led strips comes with a DMX Address Writer which has a LCD display which is convenient for using.it can set 1024 different address. there are four buttons on the main panel, respectively is the return key, addition key, subtraction key and confirm key;

d): Our dmx addressable rgb led strip is energy-saving with low power consumption, and eco-friendly without Mercury or Lead harmful metals, no ultraviolet rays, no harmful to health, this dmx led strip lights rgb adjustable has been widely used in different kinds of indoor decoration usage;

e): Superior quality dmx512 led strip 5050 smd has two waterproof level for options, IP20 (non-waterproof) is default, and IP 67 waterproof is optional, completely meet indoor and outdoor lighting applications requirement;

f): Easy for installation, our led tape light dmx digital with self-adhesive tape on backside, it can be place at aluminum profile or various of holiday decoration lighting; otherwise, the methods of DMX address setting and testing, and connect with DMX signal also easy to operate, very convenient for customers’ usage.

Applications:

Wholesale dmx led strip uses SMD 5050 LED chips as lighting source, and DMX512 IC inside that can understant DMX512 signal directly, no need of any decoder, digital rgb color can be addressable and programmable, high brightness with great illuminating effects, and it has two waterproof level for options, self-adhesive that make it easy for installation, have been widely use in various of indoor and outdoor applications.

(1): Commercial lighting: Advertisement sign lighting, Window display lighting, Lighting boxes, Backlighting for luminous characters, Channel letter lighting, Jewellery cabinet display at shopping mall or other commercial activities display scenes etc;

(2): Special place lighting: Amusement park lighting, Stairway accent lighting, Corridor lighting, Canopy and Bridge edge lighting, Archway lighting, Theater lighting, Security lighting, Emergency lighting, Hotel lighting, Restaurant lighting, Club decorative lighting, Furniture decorative lighting, Swimming pool and fountains lighting, Car decorative lighting, Path or contour marking etc;

(3): Moment decorative lighting: Festivals or holiday decorative lighting, Party decorative lighting, Special events decoration lighting etc.

Installation instructions:

1. Clean the surface you intend to stick the light strip to;
2. Peel off the backing strip off the 3M adhesive tape;
3. Press and hold the light strip firmly against the surface;
4. Plug your light strip into a compatible power supply or dimmer;
5. Connect your power supply to a wall outlet.

How to Set DMX Address:

1. Connect the Power Supply, Address Writer and Strips as following;
2. You can set all of the IC with the same address, for example address 1 or 2…………
With same address, all of the LED will change color simutaneously with the same color.
3. You can set each IC with different address, for example, the first IC with address1, the second IC with address 2, the third IC with address3…., the max address number is 1024;
With different address, all of different group LED will change color differently;
4. You can set several continuous IC with same address, for example, every three continuous IC with same address or, every six continuous IC with same address, etc.
1): With same address, all of the LED will change color simutaneously with the same color;
2): With different address, all of different group LED will change color differently.

How to Test the DMX Address:

1. Connect the Power Supply, Address Writer and Strips;
2. Testing of Address:
1) Choose the test programe of DMX address;
2) The LED of different DMX address will light on sequently.

Good quality dmx led strip from 5 star lighting factory !

Brief Discription
DMX 512 Direct Input Digital Strips Programmable, No need of any decoder, SMD 5050, DC12V, Addressable DMX LED Strip
Item Type	LED Strip Lights
Electrical and optical parameter
Model Number:	DMX LED Strip
LED QTY:	30LEDs/Meter; 60LEDs/Meter
Lighting source:	SMD 5050 LED Chip
IC type:	DMX 512 (can understant DMX 512 signal directly, no need of any decoder.)
Cutting methods:	Cuttable every 3LEDs, 5Meters/Reel
Power consumption	7.2W/Meter; 14.4W/Meter
Luminous flux	17-55Lm/Meter; 35-110Lm/Meter
PCB size(mm):	10mm ;
Input voltage:	DC12V / DC24V
Beam angle(°):	120°
Waterproof:	Waterproof level: IP20 / IP67 for options; IP20: non-waterproof (default); IP67: with silicone tube (optional)
Lighting color:	Lighting color : Digital color; Lighting color temperature: 465-630K
Operation temperature:	-20-50°C
Lifespan:	30,000hrs – 50,000hrs
Application:	Suitable for light boxes display and other commercial display usage, or for holiday and party decoration lighting
Warranty:	2years
Certifications:	CE & ROHS approved
