5.6W LED Lattice Backlight-SMD5050-Double-side-500mm
Product Type: Light Boxes Backlighting
Product Model: LED Lattice Backlight-SMD5050-Double-side-500mm
Lighting Source: 24pcs LED Chips
Voltage: DC12V
Power: 5.6W
Application: Dedicated direct type backlight, double-side advertising signboard and double-side light box.
Features:

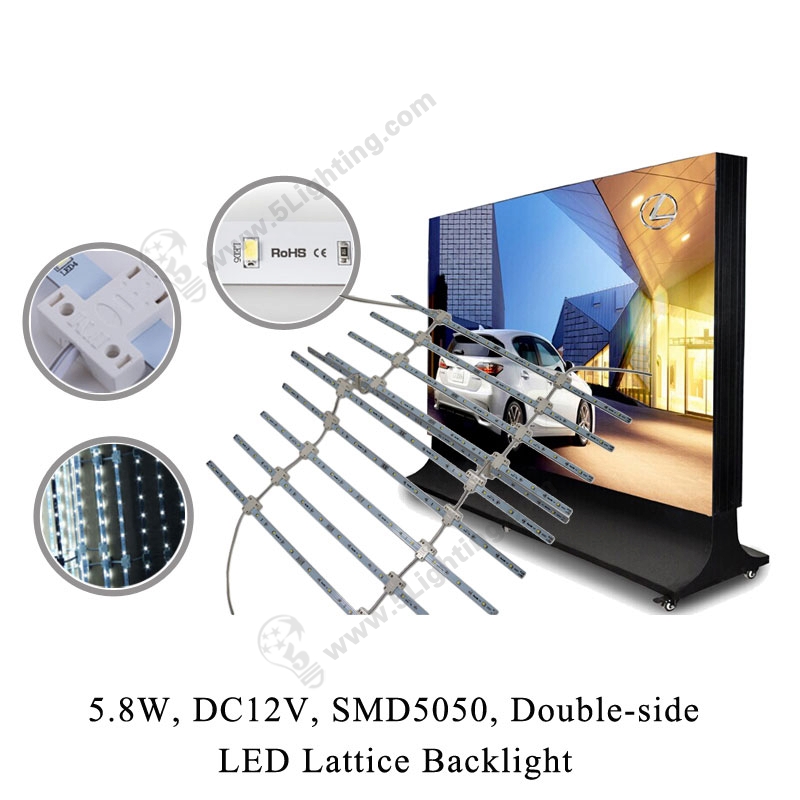

a): This LED lattice backlight 5050 uses double –side strip lights module, both front and back surface can emit lighting, It is truly the most comprehensive and versatile lighting solution for illuminated sign cabinets and general backlighting applications, and single-size optional;
b): The LED backlighting for light boxes’ space between strip to strip are available for options: 1 3/4, 2, 3 1/4, 4 Inch, customers can choose according to thickness of light boxes;
c): High efficiency 5050 lattice backlit modules adopts led chips with front lens allow minimum depths, emit uniform Light, without spots be seen on sign surface, the most powerful and practical fluorescent replacement illuminated solution;
d): Our LED lattice backlight 5050 with innovative design of lattice system comes in lightweight, easy Labor-saving Installation;
e): Excellent brightness of about 580Lm, at 5.6W low power consumption, Ideal for backlit walls or light boxes;
f): New and improved version of the original lattice, with reliable and predictable lighting results, Added reliability, longevity, and constant current technology, our LED lattice backlights specially for easy and fast backlighting large areas;
g): Cool white 8000K lighting temperature, other requirements of lighting color customized also available;
h): LED backlighting for light boxes is perfectly suitable for advertising light box’ thickness in the range of 6cm-20cm, according to light box’s thickness, clients can customized different module space.

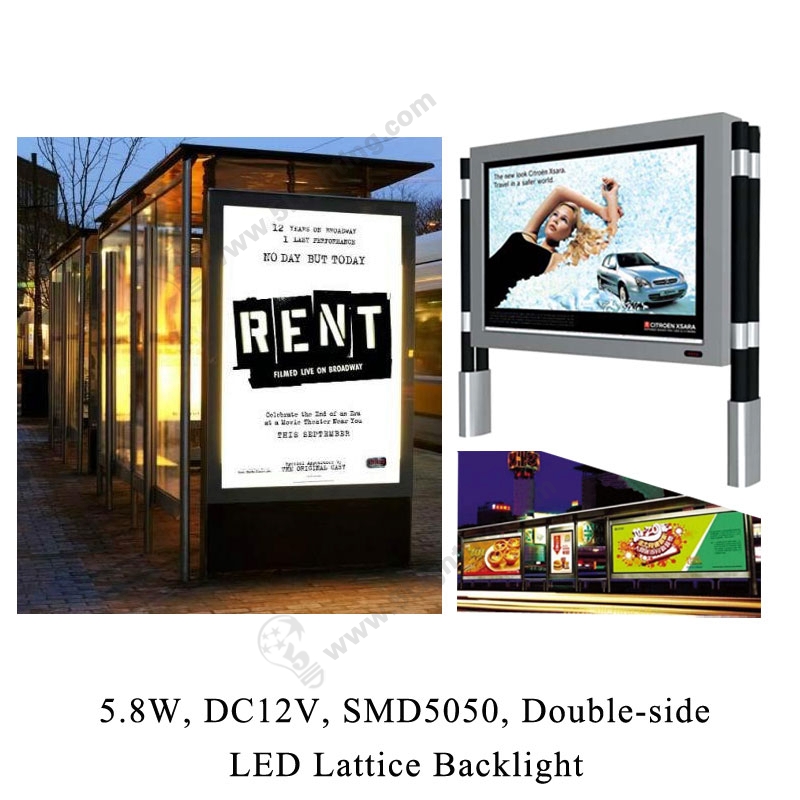

Applications:
Our LED lattice backlight 5050 uses double –side strip lights module, both front and back surface can emit lighting, It is truly the most comprehensive and versatile lighting solution for illuminated sign cabinets and general double-side backlighting applications, Such as:
(1) Thick light boxes;
(2) Indoor or outdoor sign cabinets;
(3) Large advertising light boxes;
(4) Large poster light boxes;
(5) Internally lighted billboards;
(6) Double-side signboard;
(7) Other signage display areas.
Good quality LED lattice backlight 5050 from 5Star Lighting Factory!
| Brief Discription | |
| 5.6W, 580Lm, DC12V, 24PCS SMD5050 LED Chips, Double-side, 500mm, LED Lattice Backlight for Light Boxes Backlighting | |
| Item Type | Light Boxes Backlighting |
| Electrical and optical parameter | |
| Model Number: | LED Lattice Backlight-SMD5050-Double-side-500mm |
| Material: | Aluminum+Retardant ABS |
| Item color: | White |
| LED QTY | 24pcs LED Chips |
| LED chips space: | 1 2/4 Inch |
| Module space options: | 43mm(1 3/4 Inch) / 60mm(2 Inch) / 80mm(3 1/4 Inch) / 100mm(4 Inch) |
| Distance to the face-plate: | >60mm(2 Inch) |
| Waterproof: | No |
| Power consumption: | 5.6W |
| DC output voltage: | DC12V |
| Luminous flux: | 580Lm |
| LED luminous efficiency: | 80Lm/W min, 100Lm/W max |
| Unit electric current: | 36-42mA |
| Bean angle(°): | 120° |
| Color rendering index (CRI): | Ra＞85 |
| Light appearance(CCT): | 8000K, other color temperature can be customized |
| Applicable environment: | Dry and Damp Location |
| Application: | Dedicated direct type double-side advertising signboards and various double-side light boxes. |
| Working temperature: | -30℃~60℃ |
| Lifespan: | 50,000hrs |
| Certification: | CE, RoHS |
| Packing dimension | |
| Unit Light size(Inch): | 19 3/4 Inch (L) x 2/4 Inch (W) x 1/4 Inch (H) |
| Interior box dimension (Inch): | 20 Inch (L) x 1 Inch (W) x 3/4 Inch (H) |
Installation instrutions in lighting Boxes:
Features of double sided LED ladder lights 20" Model
More specification and features of double sided LED ladder lights 20" long,
