20W fluorescent replacement
Equals: 20W fluorescent tube
Product Type: LED Tube Lights
Product Model: FLA1-T532-A144
Base Type: G5
AC input voltage: Electronic Ballast Directly(110V/220V)
Power: 14W
Light appearance(CCT):WW(2800-3200K )/CW( 6000-6500K)
Application: Suitable for indoor application.
Features:
a): Our 3 feet T5 smart LED tube lights with strong compatibility can directly replace a fluorescent tube without changing wiring or fixtures;
b): It’s frosted shell design, more convenient to hold and avoid slipping;
c): Excellent brightness and low power comsumption, Perfect for 20W fluoresent T5 tube lights replacement;
d): This 3 feet T5 smart LED tube lights delivers exceptional performance. With high output voltage, LED chips provide uniform and efficient illumination to replace any existing T5 tubes;
e): Green and eco-friendly lighting, no mercury, UV and IR, no radiation pollution, LED solid-state light source.
f): The new technology has been widely adopted, Such as: household and comercial usage.
Application:
Our 3 feet T5 smart LED tube lights with strong compatibility can directly replace a fluorescent tube without changing wiring or fixtures, has been widely used in many indoor scenes:
(1): Household Scenes: Living room, Sitting room, Bedroom, Dining room, Schoolroom etc.
(2): Commercial Scenes: Office, Meeting room, Restaurant, Shopping mall, Cabinet, workshop etc.
(3): Other Indoor Scenes: Hospital, School, Domitory, Corridor, Subway, Bus, Station etc.

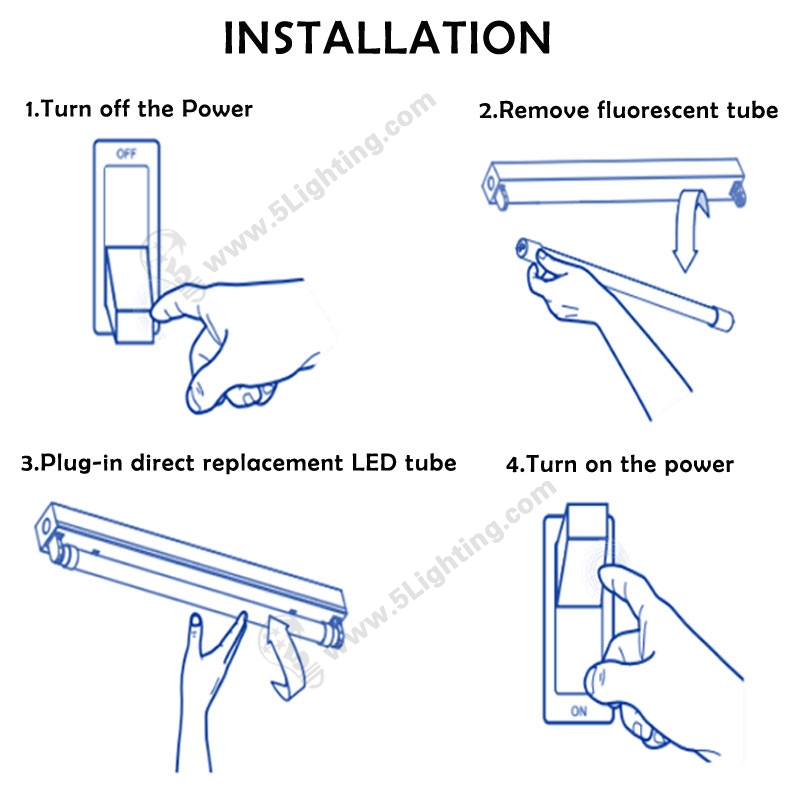

Installation Instructions:
Easy installation, only four steps:
1. Turn off the power;
2. Remove fluorescent tube;
3. Plug-in direct replacement LED Tube’;
4. Turn on the power.
Brief Discription | |
14W, 3 Feet, G5, 900Lm, T5 smart LED tube lights, Replaces 20W Fluoresent Tube Directly | |
Item Type: | LED Tube Lights |
Model Number: | FLA1-T532-A144 |
Electrical and optical parameter | |
Power Consumption: | 14W |
Replacement : | 20W T5 Fluoresent Tube |
Base Type: | G5 |
Item Color: | Frosted Shell |
Brightness: | 900Lm |
Light Appearance (CCT): | WW(2800-3200K )/CW( 6000-6500K) |
Input voltage: | Electronic Ballast Directly(110V/220V) |
Beam angle: | 120° |
Application Area: | Indoor |
Lamp Luminous Efficiency (lm/w) : | 70Lm/W |
Color rending index CRI (Ra>): | 70 |
Lighting source: | 3528 SMD LED |
Power factor(PF): | 92% |
Driver Efficiency : | 80% |
Total harmonic distortion(THD): | 20% |
Dimming: | NO |
RGB Color Available: | NO |
Working Temperature(℃): | -20 - 60℃ |
Warranty: | 2 years |
Lifespan((based on 4 hrs/day) | 20 years |
Packing dimension | |
Unit Net Weight(lb)/[g] | 0.37(lb)/165(g) |
Unit Light size(Inch): | Φ5/8Inch x 35 1/4Inch (L) |
Unit Gross Weight(lb) /[g]: | 0.55(lb)/250(g) |
Interior box dimension (Inch): | Φ: 3/4Inchx 36 1/2Inch (L) |
