120 W Ultra Thin LED Driver
- Product Type: LED Power Adapter
- Product Model: 5L-120-1200-B / 5L-240-1200-B
- Intput Voltage: 110 V / 220 V
- Power: 120 W
- Application: Office, AD, Shopping Mall, Light boxes display, signage, poster ...
Product Description :
This slim led driver is designed for LED light boxes display / Signage / Letters ...
The ultra thin sizes can be put into aluminum frames well .
The MAX power
is 120 Watts which is powerful than normal models in the market .
We have two models : 12V 10 A and 24V 5A .
Ultra slim and narrow body can be used for small sizes lighting fixtures such as back lights , aluminum frame light boxes ...
Two models for this adapter series :
(1) 5L-120-1200-B
10A LED Power Driver 110V /220V to 12V for LED Strip Light Boxes display ;
AC Input: 85-240V
DC Output: 12V 10A
Power: 120 W
Shell Material: Plastic case
Size: 417*30*25mm (L*W*H)
Weight: 330g
Safety Compliance: CE, UL
High efficiency , reliability with industry standards
Built-in over voltage, over current, and short circuit protection
Working Temperature: 0~40℃
Storage Temperature: -25 - 60℃
Ambient Humidity: 0~95% Non-Condensation
(2) 5L-240-1200-B
AC Input: 200-240V
DC Output: 24V 5A
Power: 120W
Shell Material: Plastic case
Size: 417*30*25mm (L*W*H)
Weight: 330g
Safety Compliance: CE, UL
High efficiency , reliability with industry standards
Built-in over voltage, over current, and short circuit protection
Working Temperature: 0~40℃
Storage Temperature: -25 - 60℃
Ambient Humidity: 0~95% Non-Condensation
Features:
-
CE / UL approved;
- Over voltage / over current / short circuit protection;
- Wide voltage input 85 VAC - 265 VAC ;
- Indoor driver for LED modules, strip lights, ribbon, bar lights, spot lights ...
- Slim size / high efficiency power driver ;
| Brief Description | |
| IP20, 120 Watts, 12 / 24 V slim size LED driver for light boxes, sign and letters | |
| Item Type: | LED Power Adapter |
| Model Number: | 5L-120/2401200-B |
| Electrical and optical parameter | |
| Power consumption: | 120W |
| Brand: | 5 Star |
| Lighting source: | COB |
| Input Voltage: | 110V / 220V |
| Certification: | CE, Rohs, UL |
| Out put Type: | Constant Voltage |
| Power Factor : | >0.90 |
| Output Voltage: | 12V DC / 24 V DC ±5% |
| Output current : | 10 A / 5 A max |
| Installation : | Indoor |
| IP rating: | IP20 |
| Application Area: | Indoor led light boxes, signage, letters ... lighting fixtures |
| Dimming: | Yes ( 0-10 V / Resistance / PWM) |
| Working Temperature(℃): | -25 - 60℃ |
| Sizes: | 417mm(L) × 30mm (W) × 25mm(H) |
| Warranty: | 2 years |
| Life span : | 15 years |
More details , kindly download our PDF version for this slim led power supply >>>
https://www.5lighting.com/images/slim-light-boxes-power-supply-120W-specifications.pdf
led light boxes edge light bars with built-in power supply
Built-in power supply is good appearance for light box display industry,
They can keep one whole light box with only power plug outlet .
More details kindly check >>>
https://www.5lighting.com/led-light-box-lighting-with-built-in-transformer

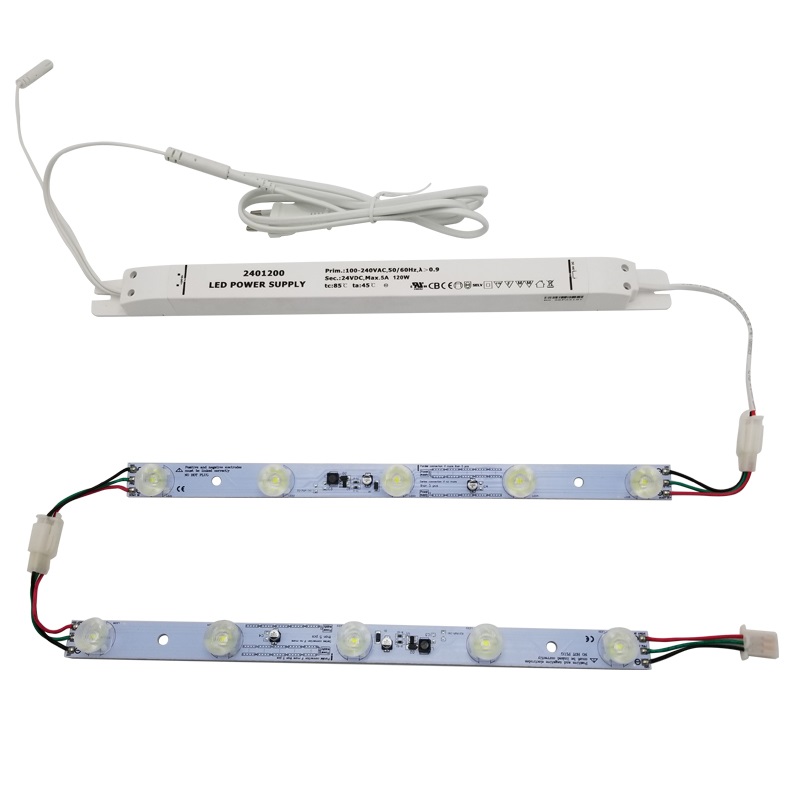

How to install edge lights with 120 Watts slim power driver ?
Our high output edge modules with slim narrow 120W drivers can meet your commands .
Combining high lumens output Osram LEDs and well designed lenses, 24 volt power adapter , our strip bar lights can make your whole fabric
graphic colorful, even and bright .
Whole sets of lightboxes and signages are neat and clean .
More installation steps can be reached at our 360 edge lights web link:
https://www.5lighting.com/edge-lit-led-modules-360mm
narrow 120W drivers for light boxes
